| Quantity: | |
|---|---|
ASNN2
TFW
Tianjin, China
5000PCS/Month
T/T

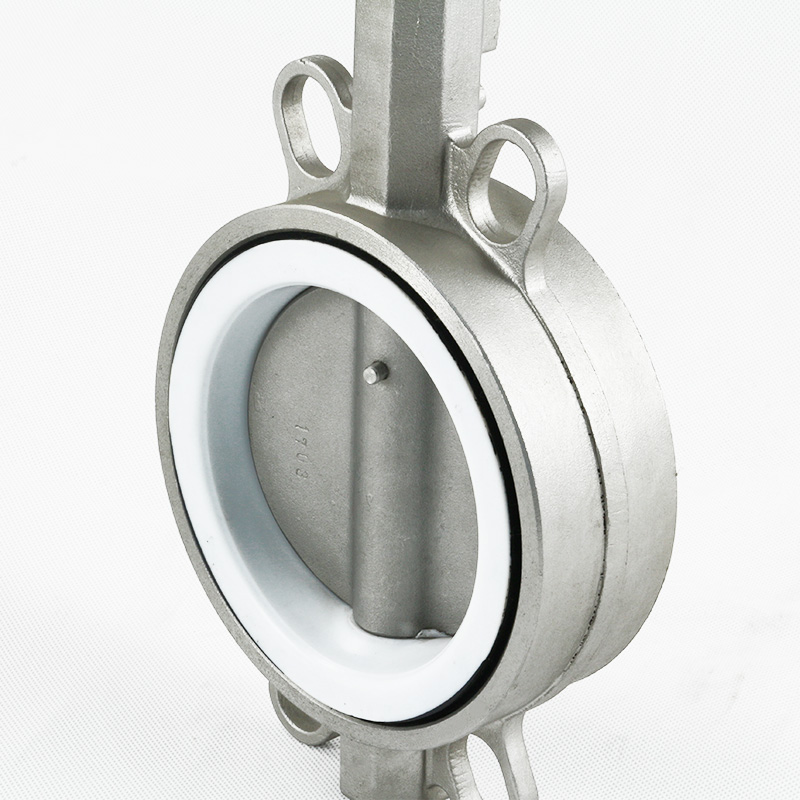

6 Inch Wafer Stainless Steel Butterfly Valve
Specifications:
Size DN50-DN300
Body:Stainless Steel304,316
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,AL+Bronze
Bushing:PTFE
O-ring:NBR EPDM
Standards:
| Design standard | API609, ANSI16.34, JISB2064, GB T12238 |
| Face to Face | API609, DIN3202, ISO5752, BS5155 |
| Flange drilling | DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K |
| Top Flange | ISO5211 |
| Test Inspection | API598 |
Material:
| Body | Stainless Steel |
| Disc | Stainless Steel |
| Stem | Stainless Steel |
| Seat | EPDM, NBR, PTFE, VITON, HYPALON |
| O ring | EPDM, NBR |
Application:
HVAC,Water Supply&Sewage,
Food&Beverage,Chemical/petrochemical/processing,
Power And Utilities,Paer And pulpmship building
Features:
1. Structure simple compact, the weight is light, 90' revolves, the switch is rapid
2. Designs reasonably, the assembling and dismantling is easy, to be advantageous
For the service
3. Uses the eccentric structure, reduces the seal packing collar the friction, lengthens
The valve service life
4. Completely seals, divulges for zeroMaterials
Why choose us?
Our Price:
We offer competitive prices on the market and guarantee the high quality of each product!
Our Factory:
We own our own factories more than 20 years.Our factory is located in Jinnan District, Tianjin, China, covering an area of 1,000-3,000 squre meters, with advanced production equipment, which can provide ISO 9001:2000CE and other management certifications.
Our produts:
We are successed with the production of high quality of soft sealing butterfly valves,gate valves,strainers,checkvalves and other products.Over the years,TFW insist to optimized production base, efficient enterpricemanagerment plateform,strong R&D institutions and one pair of loyal customers responsible for foreigntrade sales team. Products were exported to the US,Canada,Europe,Japan,Australia and other countrieand regions,with annual sales in excess of $10 million.
Our Services:
We promise that we will ship the goods on time;
We can customize your company logo on valve body;
We can do different colors according to your requirements;
We can produce different standards valves to different markts.
More Information, Please Contact Us!
Body Size: 4 inches (100 mm)
Body Material: stainless steel
Disc: Usually stainless steel
Seat: PTFE,
Stem: Stainless steel
Operating Temperature Range: Depends on materials, but usually -20°F to 250°F (-29°C to 121°C)
Pressure Range: Can handle pressures up to 150-300 psi depending on materials and design
Actuation: Manual lever, gear operator, pneumatic actuator, electric actuator
End Connection: Flanged, wafer, lug style
Flow Characteristics: Butterfly valves provide relatively high capacity and have quick open/close ability, but do not provide tight shutoff compared to ball or gate valves
Typical Applications: Isolation, throttling, control in water, air, gas, steam and other non-viscous fluid applications
