Tianjin, China
5000PCS/Month
L/C, T/T
Manual

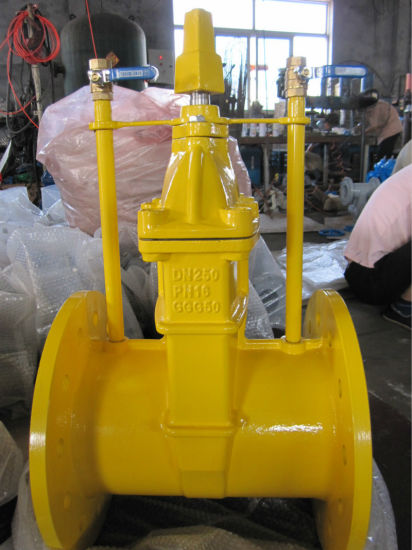

Wedge Gate Valve
Inside Gate Valve
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
DIN3202 F4
Industrial Usage, Water Industrial Usage, Household Usage
Dn50-Dn600
TFW
Plywood Case
CE
Tianjin China
84818040
Water
Ordinary Temperature
Straight-through
Cast Iron
Flange
Low Pressure
Nominal pressue (MPa) | 1.0 | 1.6 | |
Nominal diameter(mm) | 50-1200 | 50-600 | |
Test pressure | Shell | 1.5 | 2.4 |
(MPa) | Seal | 1.1 | 1.76 |
Applicable temperature | 150 | ||
Applicable medium | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc. | ||
Operating mode | manual, worm gear, pneumatic, electric, etc. |
Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
DIN 3352 | DIN2533 PN10 / PN16 | DIN3202 F4 F5 | DIN3230 |
No. | Part Name | Material |
1 | Body | Cast Iron / Ductile Iron |
2 | Body seat ring | Brass |
3 | Wedge | Ductile iron |
4 | Wedge Seat Ring | Brass |
5 | Stem Nut | Brass |
6 | Stem | Stainless Steel |
7 | Bonnet Bolt | Carbon Steel |
8 | Nut | Carbon Steel |
9 | Washer | Carbon Steel |
10 | Gasket | NBR |
11 | Bonnet | Cast iron / Ductile rion |
12 | O-Ring | NBR |
13 | Locating Ring | Brass |
14 | O-Ring | NBR |
15 | Bonnet Nut | Brass |
16 | Mini pad | PTFE |
17 | Dust Ring | NBR |
18 | Wheel | Ductile rion |
19 | Washer | Carbon Steel |
20 | Bolt | Carbon steel |
Application:
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Our Produts:
We are successed with the production of high quality of soft sealing butterfly valves,gate valves,strainers,checkvalves and other products.Over the years,TFW insist to optimized production base, efficient enterpricemanagerment plateform,strong R&D institutions and one pair of loyal customers responsible for foreigntrade sales team. Products were exported to the US,Canada,Europe,Japan,Australia and other countrieand regions,with annual sales in excess of $10 million.
Our Services:
We promise that we will ship the goods on time;
We can customize your company logo on valve body;
We can do different colors according to your requirements;
We can produce different standards valves to different markts.
More Information, Please Contact Us!
Nominal pressue (MPa) | 1.0 | 1.6 | |
Nominal diameter(mm) | 50-1200 | 50-600 | |
Test pressure | Shell | 1.5 | 2.4 |
(MPa) | Seal | 1.1 | 1.76 |
Applicable temperature | 150 | ||
Applicable medium | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc. | ||
Operating mode | manual, worm gear, pneumatic, electric, etc. |
Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
DIN 3352 | DIN2533 PN10 / PN16 | DIN3202 F4 F5 | DIN3230 |
No. | Part Name | Material |
1 | Body | Cast Iron / Ductile Iron |
2 | Body seat ring | Brass |
3 | Wedge | Ductile iron |
4 | Wedge Seat Ring | Brass |
5 | Stem Nut | Brass |
6 | Stem | Stainless Steel |
7 | Bonnet Bolt | Carbon Steel |
8 | Nut | Carbon Steel |
9 | Washer | Carbon Steel |
10 | Gasket | NBR |
11 | Bonnet | Cast iron / Ductile rion |
12 | O-Ring | NBR |
13 | Locating Ring | Brass |
14 | O-Ring | NBR |
15 | Bonnet Nut | Brass |
16 | Mini pad | PTFE |
17 | Dust Ring | NBR |
18 | Wheel | Ductile rion |
19 | Washer | Carbon Steel |
20 | Bolt | Carbon steel |
Application:
Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.
Our Produts:
We are successed with the production of high quality of soft sealing butterfly valves,gate valves,strainers,checkvalves and other products.Over the years,TFW insist to optimized production base, efficient enterpricemanagerment plateform,strong R&D institutions and one pair of loyal customers responsible for foreigntrade sales team. Products were exported to the US,Canada,Europe,Japan,Australia and other countrieand regions,with annual sales in excess of $10 million.
Our Services:
We promise that we will ship the goods on time;
We can customize your company logo on valve body;
We can do different colors according to your requirements;
We can produce different standards valves to different markts.
More Information, Please Contact Us!
