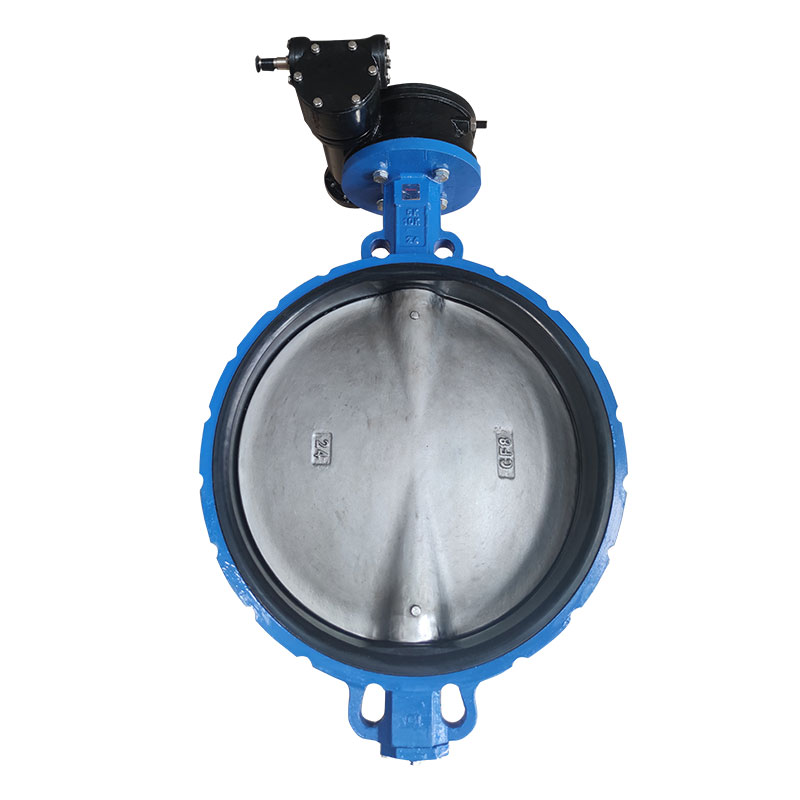

DN600 24 Inch CI Worm Gear 10K Wafer Butterfly valve

Size: DN40-DN1200
End Flange: ANSI B 16.1 EN1092 AS2129
Face to Face: ANSI B 16.10
Top Flange: ISO 5211
Normal Pressure: PN1.0/1.6Mpa(150/200PSI)
Body: Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M
Disc: Cast Iron/Ductile Iron/ALB/CF8M/CF8
Stem: SS416/304/316/431
Seat: Hypalon/EPDM/Neoprene/NBR/Viton/Silicon/PTFE
Suitable Temperature: -45C to 150C

Features:
1. Structure simple compact, the weight is light, 90' revolves, the switch is rapid
2. Designs reasonably, the assembling and dismantling is easy, to be advantageousFor the service
3. Uses the eccentric structure, reduces the seal packing collar the friction, lengthensThe valve service life
4. Completely seals, divulges for zero
Availability:
Quantity:

Size: DN40-DN1200
End Flange: ANSI B 16.1 EN1092 AS2129
Face to Face: ANSI B 16.10
Top Flange: ISO 5211
Normal Pressure: PN1.0/1.6Mpa(150/200PSI)
Body: Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M
Disc: Cast Iron/Ductile Iron/ALB/CF8M/CF8
Stem: SS416/304/316/431
Seat: Hypalon/EPDM/Neoprene/NBR/Viton/Silicon/PTFE
Suitable Temperature: -45C to 150C

Features:
1. Structure simple compact, the weight is light, 90' revolves, the switch is rapid
2. Designs reasonably, the assembling and dismantling is easy, to be advantageousFor the service
3. Uses the eccentric structure, reduces the seal packing collar the friction, lengthensThe valve service life
4. Completely seals, divulges for zero


DIN ANSI JIS API Worm Gear Wafer Lt Butterfly Valve Dn200 Good Price Butterfly Valve
