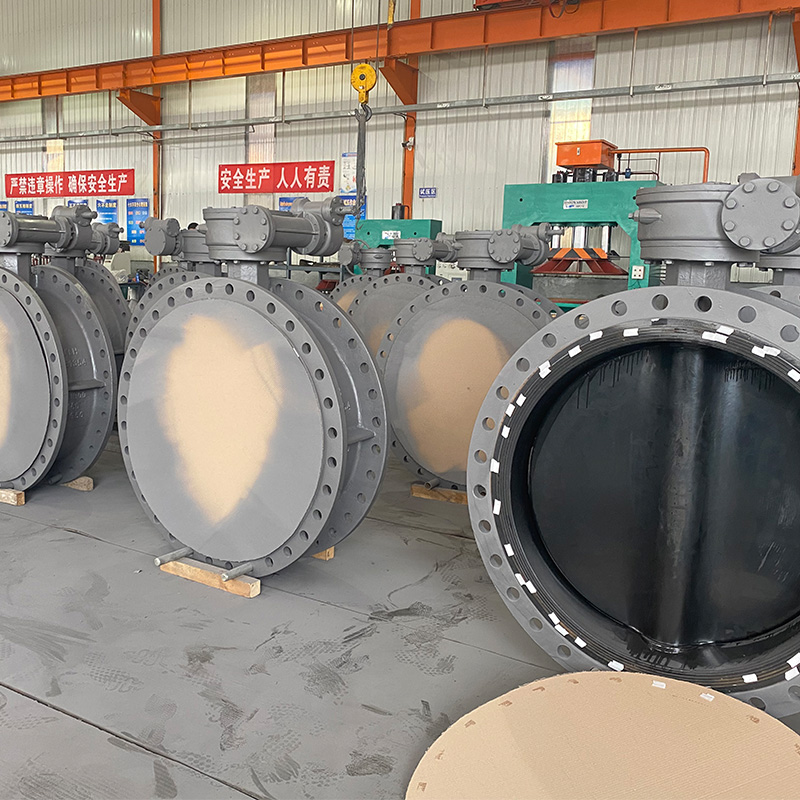

Concentric Disc Double Flange Butterfly Valve
Product description:
Our Butterfly range is economically priced but with higher quality and capability than most
at this market
Product Feature:
Resilient seated butterfly valve is a Double Flange design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.
Technical Parameters:
Size | DN80-DN600 | DN650-DN3000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal(Air) | 6Bar | 6Bar |
Operating Temperature | -40℃~+160℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic |
Main Material:
Name | Material |
Body | Cast Iron Ductile Iron |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON HEPDM Neoprene Hypalon Natural rubber |
Concentric Disc Double Flange Butterfly Valve
Product description:
Our Butterfly range is economically priced but with higher quality and capability than most
at this market
Product Feature:
Resilient seated butterfly valve is a Double Flange design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.
Technical Parameters:
Size | DN80-DN600 | DN650-DN3000 |
Working pressure | 16Bar | 10Bar |
Shell | 24Bar | 15Bar |
Seal(Air) | 6Bar | 6Bar |
Operating Temperature | -40℃~+160℃ | |
Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Driving method | Hand Lever Worm Gear Electric Pneumatic |
Main Material:
Name | Material |
Body | Cast Iron Ductile Iron |
Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
Shaft | Stainless Steel Monel K500 |
Seat | BUNA NBR EPDM VITON HEPDM Neoprene Hypalon Natural rubber |
