In industrial piping systems, gate valves are a common choice for controlling fluid flow. Selecting the right valve size isn’t just about system compatibility—it also affects long-term performance and cost-efficiency. In this article, we’ll walk through some practical guidelines to help you make smart decisions when choosing gate valve sizes.
ANSI gate valves refer to valves that comply with standards issued by the American National Standards Institute (ANSI). They’re widely used in industrial applications to start or stop the flow of fluid within a pipeline.
Design & Manufacturing: Standards like ANSI/ASME B16.34 define valve strength, material requirements, and pressure-temperature ratings.
Pressure Classes: ANSI uses a class rating system (such as Class 150, 300, 600, etc.) to indicate the maximum working pressure the valve can handle under specific conditions.
Dimensions & Connections: Flange sizes follow ANSI B16.5, ensuring that valves can easily connect with standardized pipelines and components.
A gate valve typically includes the body, gate (or disc), stem, bonnet, and sealing elements. Operation is straightforward: the stem raises or lowers the gate—manually or via an actuator—allowing the valve to be fully opened or fully closed.
Best Use Case: Gate valves are designed for on/off service. They’re not ideal for throttling flow, as partial openings can cause wear or vibration over time.
Selecting the correct gate valve size requires a comprehensive understanding of the pipeline's dimensions, pressure rating, and flow requirements.
1. Understanding DN and NPS
DN (Nominal Diameter): A metric standard used internationally (e.g., DN50). It does not represent the actual inside or outside diameter but serves as a standardized nominal classification.
NPS (Nominal Pipe Size): The imperial system used in ANSI/ASME standards (e.g., NPS 2″). While NPS and DN sizes correspond closely, the numerical values are not identical (e.g., NPS 2″ ≈ DN50).
Valve Size Matching: The gate valve size should match the nominal pipe diameter. For example, if the pipe is DN100 (4″), a DN100 gate valve should be selected.
2. Outside Diameter (OD) and Wall Thickness
Standardized OD: According to ASME B36.10/19, each NPS size corresponds to a fixed outside diameter (e.g., NPS 2″ = 60.3 mm OD).
Wall Thickness Impact: While the OD remains constant, the inside diameter (ID) varies depending on wall thickness (e.g., SCH 40, SCH 80). This affects actual flow capacity and fit.
Working Pressure: Select the valve’s pressure class (e.g., Class 150, 300) based on the system’s maximum operating pressure, including any pressure fluctuations.
Class 150 is typically suitable for up to 1.0 MPa (~10 bar)
Class 300 is suitable for up to 2.5 MPa (~25 bar)
Temperature Factor: In high-temperature applications, a higher pressure class may be required even if the pressure is moderate.
Example: For a medium at 300°C with 2.0 MPa working pressure, a Class 300 valve is recommended to safely accommodate temperature-induced derating.
Flow rate is a key factor in valve performance. Choose a valve size based on the actual flow demands—generally, a larger diameter supports higher flow.
For high-viscosity media (e.g., oil) or systems with large flow volumes, consider upsizing the valve to ensure adequate capacity and avoid pressure drop.
Pipe Size, Valve Size, and Inch-to-Metric Conversion Table
Inch (NPS) | DN (Nominal Diameter) | Outside Diameter (OD, mm) | Typical Inside Diameter (ID, mm) – SCH 40 |
1/4″ | DN8 | 13.7 | 6.4 |
3/8″ | DN10 | 17.1 | 10.2 |
1/2″ | DN15 | 21.3 | 15.8 |
3/4″ | DN20 | 26.7 | 20.9 |
1″ | DN25 | 33.4 | 26.6 |
1-1/4″ | DN32 | 42.2 | 35.1 |
1-1/2″ | DN40 | 48.3 | 40.9 |
2″ | DN50 | 60.3 | 52.5 |
2-1/2″ | DN65 | 73.0 | 62.7 |
3″ | DN80 | 88.9 | 77.9 |
4″ | DN100 | 114.3 | 102.3 |
6″ | DN150 | 168.3 | 154.1 |
8″ | DN200 | 219.1 | 202.7 |
Note:
The inside diameter (ID) varies based on pipe wall thickness (schedule), and the values shown are typical for Schedule 40 pipes.
DN and NPS are approximate equivalents (e.g., DN50 ≈ NPS 2″), but they follow different standards—DN under ISO, and NPS under ANSI.
Mistake 1: Choosing valve size based solely on pipe inner diameter
Correction: Always select valves based on nominal diameter (DN/NPS), not the actual inner diameter. Valve size is standardized and does not directly match the pipe's ID.
Mistake 2: Ignoring wall thickness
Correction: Thick-walled pipes (e.g., SCH 80) have a smaller internal diameter. Be sure to check the valve’s flow path to ensure it meets flow requirements.
Mistake 3: Assuming ASME valves fit ISO/DIN piping
Correction: ASME and ISO/DIN flanges differ in outer diameter and bolt hole patterns. They are not directly interchangeable. To use an ASME valve in an ISO pipeline, you’ll need an adapter flange or custom transition fitting.
Q: How should I handle thick-walled pipes (e.g., SCH 80)?
A: Check if the valve’s flow passage matches the pipe's inner diameter. If it's too narrow, consider upsizing the valve to avoid flow restrictions.
Additional Tips

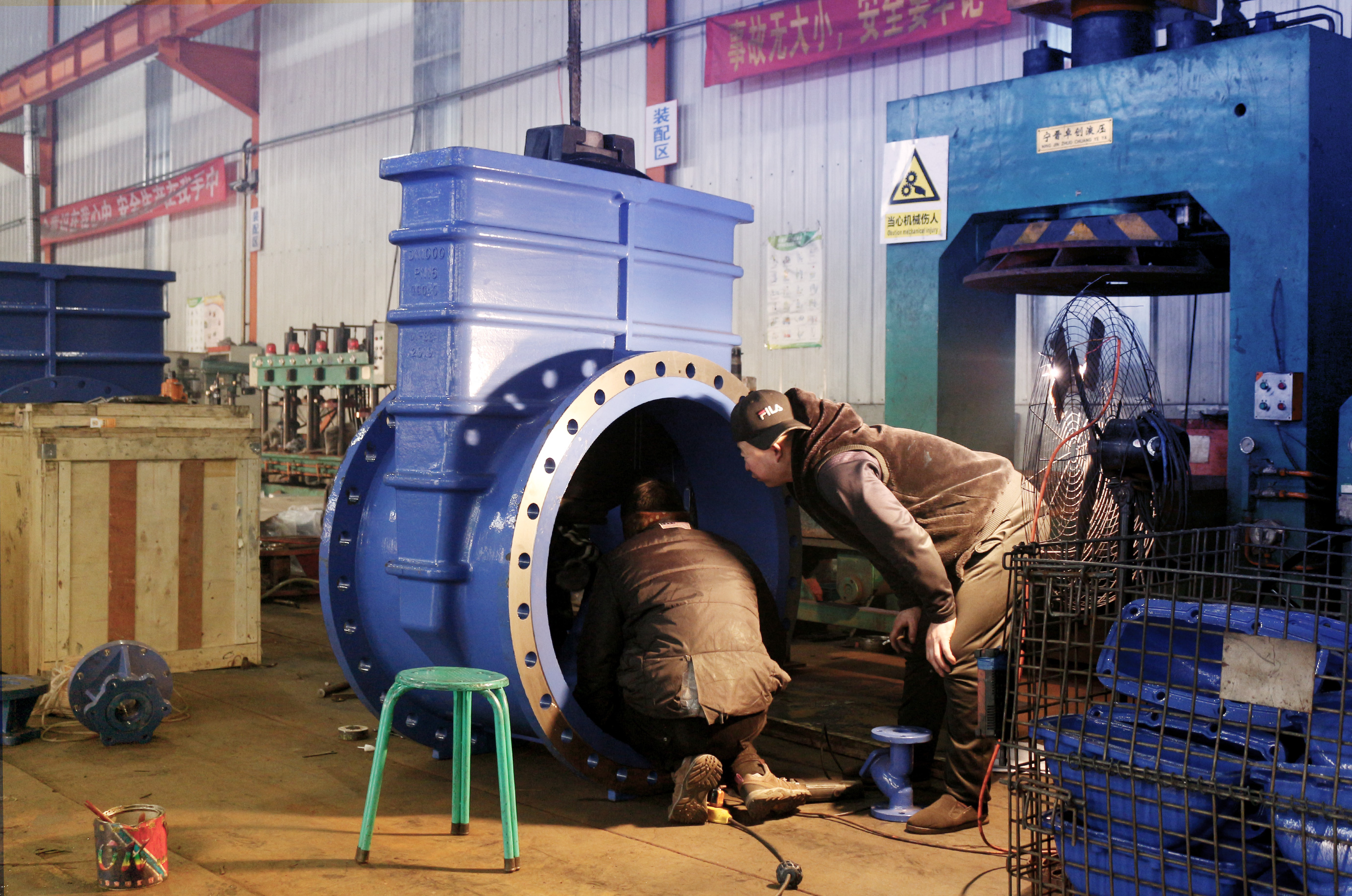

For large-size valves (DN ≥ 200), verify that the actuator torque is sufficient for reliable operation.
For corrosive media, choose materials with appropriate corrosion allowance to ensure durability.
Confirm the pipeline size (DN/NPS) and match the valve's nominal diameter.
Choose the correct pressure class to meet operating conditions.
Evaluate flow rate requirements to ensure the valve doesn't restrict the system.
Take into account pipe wall thickness, flange standards, and special conditions to avoid sizing errors.
Choosing the right gate valve size improves system safety, performance, and cost-efficiency over time. We hope this article has helped clarify how to select the proper valve size for your application. If you have further questions or need assistance, feel free to contact TFW Valve—we’re here to help.
