| Quantity: | |
|---|---|
Tianjin, China
5000PCS/Month
L/C, T/T, D/P, Western Union, Paypal

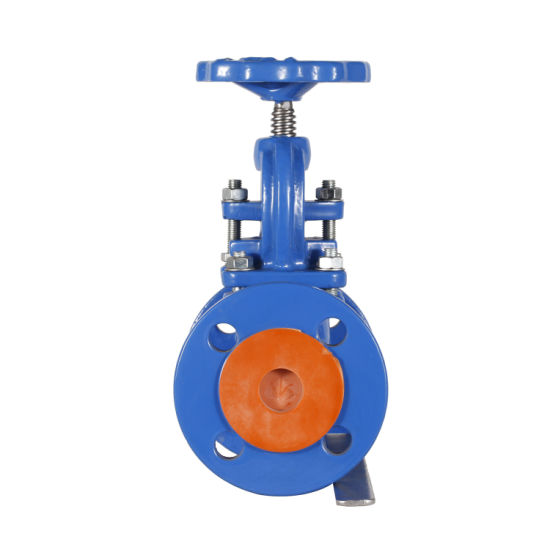

Size: DN15-300mm
Pressure: Pressure: PN 10/16/25, ANSI150/300lb
Actuator: Manual
Type: Bolted Bonnet, OS&Y, straight/Y type/right angle
Standard: DIN, BS, API
Face to Face Dimension: DIN3202 or ANSI B16.10,
Flanged Dimension: DIN2501, ANSI B16.5
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining, water treatment and etc.
| PART | MATERIAL | STANDARD |
| Body | Cast iron, Ductile iron | ASTM A126 CLASS B |
| Seat Ring | Cast Bronze | ASTM B62 |
| Disc | Cast Bronze | ASTM B62 |
| Gasket | Brass | ASTM B16 |
| Bonnet | Cast iron | ASTM A126 CLASS B |
| Packing | Graphite | |
| Stem | Brass | ASTM B16 |
| Bolts | Steel | ASTM A307 B |
| Nuts | Steel | ASTM A307 B |
Size: DN15-300mm
Pressure: Pressure: PN 10/16/25, ANSI150/300lb
Actuator: Manual
Type: Bolted Bonnet, OS&Y, straight/Y type/right angle
Standard: DIN, BS, API
Face to Face Dimension: DIN3202 or ANSI B16.10,
Flanged Dimension: DIN2501, ANSI B16.5
Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining, water treatment and etc.
