The OS&Y Gate Valve, short for Outside Screw and Yoke Gate Valve, is a rising stem wedge gate valve commonly used for on/off control of fluid flow. As a critical component in industrial piping systems, the OS&Y gate valve is known for its durability, ease of maintenance, and highly visible operational status. These features make it especially suitable for demanding applications that involve high pressure, frequent operation, or require quick visual confirmation of the valve's position. As a result, OS&Y gate valves are widely used in industries such as water treatment, fire protection, and various industrial process systems.
OS (Outside Screw): This refers to the external threaded stem design, where the stem threads are located outside the valve body. As the handwheel turns, the stem moves up or down visibly, allowing operators to easily check whether the valve is open or closed.
Y (Yoke): The yoke is a structural support that connects the valve body to the handwheel and stem. It ensures stability in the transmission mechanism and contributes to reliable and smooth operation.
One of the standout features of the OS&Y gate valve is its visual clarity. The exposed rising stem provides a direct visual indication of the valve’s status—when the stem is raised, the valve is open; when it is lowered, the valve is closed. This eliminates the need for external indicators or sensors, reducing the risk of misoperation and allowing for quick status checks with just the naked eye.
The external stem design also makes maintenance more straightforward. Operators can easily inspect the stem for signs of wear or lubrication issues without dismantling the valve. Routine cleaning or re-greasing can be performed quickly and efficiently. In addition, most OS&Y gate valves are designed with replaceable seals and stems, allowing for partial repairs instead of full valve replacements—saving both time and maintenance costs.
In fire protection systems, safety regulations in many regions—such as those outlined by the NFPA (National Fire Protection Association)—explicitly require OS&Y gate valves as main control valves. The ability to quickly and clearly verify the valve position is essential in emergency situations, and this visibility gives OS&Y valves a clear advantage over non-rising stem (NRS) designs, which lack external position indicators.
Beyond fire safety, OS&Y gate valves also comply with major international industrial standards, including ANSI, API, and DIN, making them easy to integrate into a wide range of piping systems. Even during power outages or automated system failures, these valves can be manually operated via the handwheel, ensuring that critical systems remain under control.
The most straightforward way to check whether an OS&Y gate valve is open or closed is by observing the position of the stem. As the valve operates, the stem visibly rises or lowers, providing an immediate visual cue.
Observe the Stem Position:
When the stem is raised, the valve is in the open position.
When the stem is lowered, the valve is in the closed position.
Check the Handwheel Rotation Direction:
Turning the handwheel counterclockwise raises the stem and opens the valve.
Turning the handwheel clockwise lowers the stem and closes the valve.
Important Notes:
If the stem becomes stuck due to rust or debris, do not force it. Instead, clean the threads and apply lubricant to ensure smooth operation. It is also recommended to inspect the stem and sealing components regularly for signs of wear to maintain reliable valve performance.

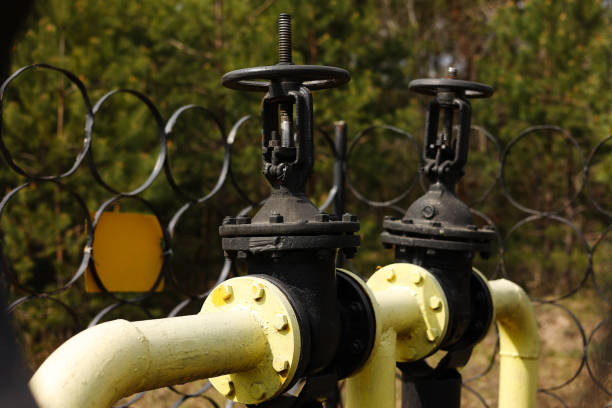

Image source: istock
Gate valves can be broadly categorized into two types based on stem structure: the OS&Y Gate Valve (Outside Screw and Yoke) and the NRS Gate Valve (Non-Rising Stem). Understanding their structural and functional differences is key to choosing the right valve for your application.
The OS&Y gate valve features an externally threaded stem that moves up and down as the handwheel is turned. This rising motion directly indicates the valve's status—when the stem is up, the valve is open; when it’s down, the valve is closed. In contrast, the NRS gate valve has its stem threads located inside the valve body. As the handwheel is turned, the stem rotates but does not rise, making it impossible to determine the valve's position just by looking.
Installation Space and Application Scenarios
OS&Y gate valves require more vertical space to accommodate the rising stem, which makes them unsuitable for tight installations or underground piping systems. They are best used in above-ground industrial environments where space is not a limitation. On the other hand, NRS gate valves have a compact structure with a fixed stem height, making them ideal for underground installations, municipal water systems, and applications where vertical space is limited.
Maintenance Ease and Long-Term Costs
OS&Y valves are generally easier to inspect and maintain. Because the stem is exposed, it’s easy to monitor wear and lubrication status, and routine maintenance such as greasing or replacing seals can often be done without disassembling the valve. This makes OS&Y a more cost-effective option over the long term. NRS valves, however, require disassembly to access internal components, resulting in more complex maintenance and potentially higher lifecycle costs.
Which Type Should You Choose?
OS&Y gate valves are ideal for systems that prioritize safety, visibility, and maintenance ease—such as industrial processing lines, power plants, chemical systems, and building fire protection networks. NRS gate valves are more suitable for buried pipelines, underground pump stations, and municipal water distribution systems where space is restricted and maintenance access is infrequent.

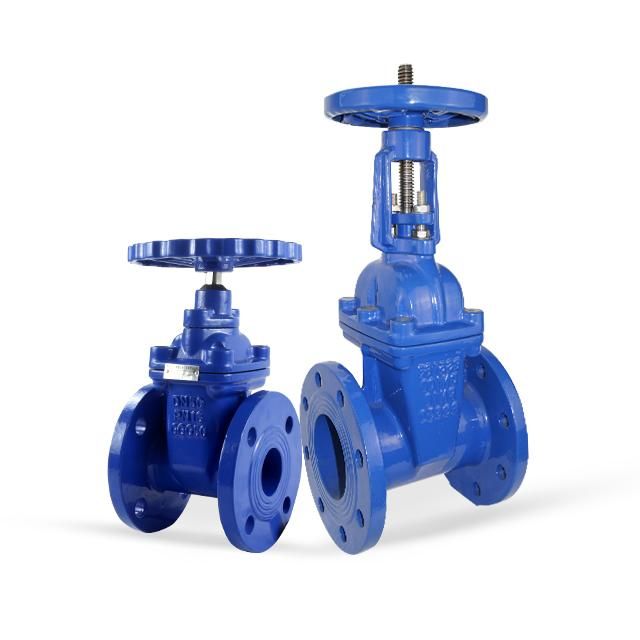

Left: Non-rising stem gate valve Right: Rising stem gate valve
OS&Y gate valves are widely used for their reliability and long service life. However, when installed in outdoor environments, their lifespan can be affected by exposure to the elements. Compared to indoor or protected installations, outdoor-mounted OS&Y valves may require more frequent maintenance to ensure optimal performance over time.
Choose Corrosion-Resistant Materials
For outdoor applications, it is highly recommended to select valves with stainless steel stems, corrosion-resistant coatings such as FBE (fusion bonded epoxy) or epoxy paint, or fully stainless steel bodies for enhanced durability.
Install Protective Covers
Use simple weather shields or rain covers to protect the exposed stem area from direct contact with rain, dust, and debris. This helps prevent contamination and mechanical wear of the threaded stem.
Perform Regular Lubrication and Inspections
Apply grease to the stem every 3 to 6 months, depending on the operating conditions. During inspection, check for smooth stem movement and ensure there is no obstruction or excessive resistance.
Routine Cleaning and Upkeep
Remove accumulated dust, rust, or grime from the stem and handwheel area periodically to keep the valve operating smoothly.
Rust Prevention and Repainting
Inspect the valve before and after rainy seasons. If signs of rust are found, remove it promptly and reapply anti-rust paint to protect exposed metal surfaces.
Monitor Seal Integrity
Conduct seal testing twice a year. If leakage or seepage is detected, replace the sealing components immediately to prevent performance loss or system failure.
Maintain a Service Record
For critical valve locations, maintain a maintenance log including lubrication dates, inspection findings, parts replaced, and any corrective actions taken. This helps track performance trends and identify potential issues early.

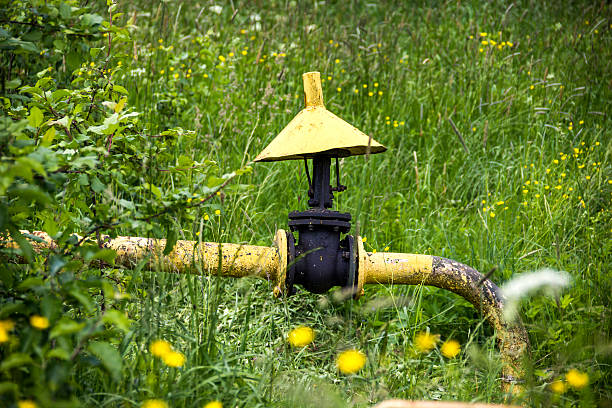

Installing protective covers for OS&Y gate valves
