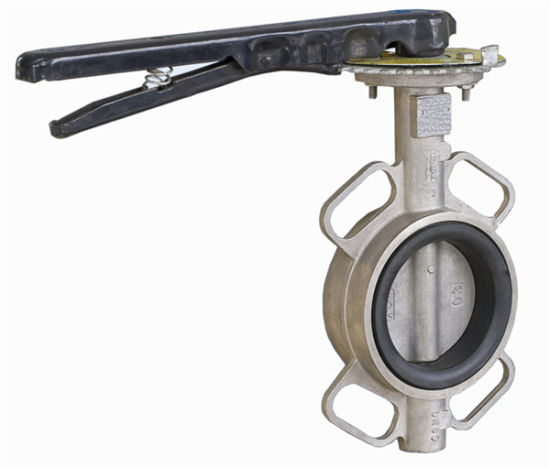

Pn10 Wafer Type Butterfly Valve with High Quality

Quantity:
  • Tianjin, China
  • 5000PCS/Month
  • L/C, T/T

Wafer Butterfly Valve with Tongue and Groove Seat, PN10/16, 150LB

Size: DN50-DN600
Flange: DIN, BS, ISO, ANSI, AS, JIS
Face to Face: API609, BS5155, DIN3202, ISO5752
Top Flange: ISO 5211
Normal Pressure: PN1.0/1.6Mpa(150/200PSI)
Body: Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M
Disc: DI/ALB/CF8M/CF8/Hastelloy Alloy/Monel
Stem: SS416/304/316/431
Seat: Hypalon/EPDM/Neoprene/NBR/Viton
Suitable Temperature: -45C to 150º C

Features:
1. Structure simple compact, the weight is light, 90' revolves, the switch is rapid
2. Designs reasonably, the assembling and dismantling is easy, to be advantageous
For the service
3. Uses the eccentric structure, reduces the seal packing collar the friction, lengthens
The valve service life
4. Completely seals, divulges for zeroMaterials

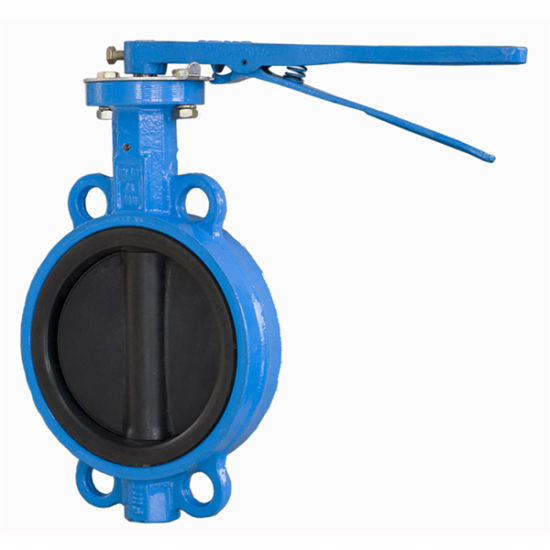

Pn10 Wafer Type Butterfly Valve with High Quality

STANDARD MATERIAL OF MAIN PARTS
NO. PART MATERIAL
1 Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
2 Seat NBR,EPDM, Viton,Neoprene,HYPALON,Silicon
3 Shaft Stainless Steel416,316,304
4 Disc Ductile Iron+Ni,CF8,CF8M,Bronze
5 Pin Stainless Steel
6 Bushing PTFE,Bronze
7 O-Ring NBR,EPDM

1. Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory ,and not trading company.
2. Q: Do you have agent or representative abroad?
A: We dont have agent abroad,please contact us to purchase valves
from TIANJIN TANGFA WATTS VALVE CO., LTD.. directly.
3. Q: What's your product range?
A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,
generally 30-35 days.
5. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide ?
A: We can provide CE/ ISO / WRAS
7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service
8. Payment
T/T, L/C, OA, D/P, D/A
9.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
10. Do you provide free sample?
Free sample is ok for us.
11. Do you accept custom design on size?
Yes, if the size is reasonable
