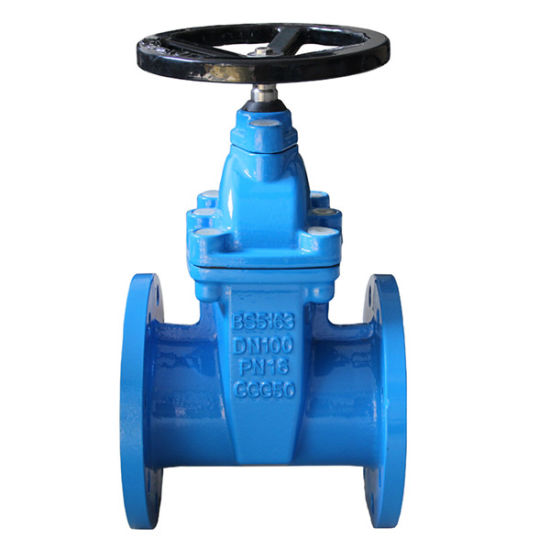

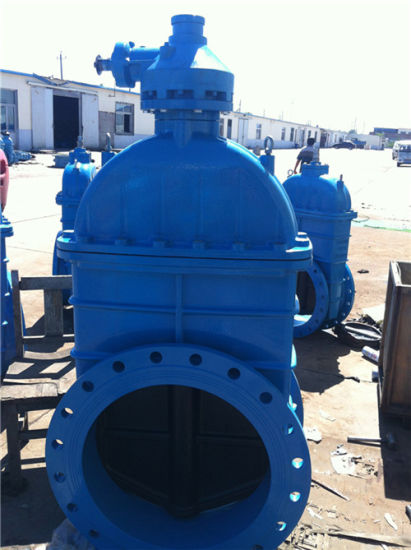

Rubber Resilient Seated Gate Valve Pn16

  • Tianjin, China
  • 5000PCS/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • 200 Pieces

DIN3352 Resilient Seated Gate Valve, DIN3202 F4, Flanged Ends, Non-Rising Stem, PN10/16.

1) Product information: The gate valves supplied are mainly used for adjusting water,
Steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150
3) Connection type: Flanged type, push-on type, mechanical joint type, plain ends
Type, PVC socket
4) Material:
A) Body: Ductile iron
B) Wedge: Ductile iron, core fully vulcanized with NBR or EPDM rubber
C) Wedge nut: Brass
D) Stem: Stainless steel, BS970 431S29 or DIN17440 X 20Cr13
E) Gasket: NBR
F) Bonnet: Ductile iron
G) O-ring: NBR
H) Washer: Carbon steel or stainless steel
5) Size: 50-600mm/2" - 24"
6) Pressure rate: PN10, PN16
7) Coating:
A) Fusion-bonded epoxy 200-250 microns inside and outside
B) Coating as per customers' requirement

1 Body Ductile Iron
2 Seat EPDM
3 Shaft Stainless steel 420
4 Disc Ductile Iron
5 Wedge Nut Brass
6 Bonnet Ductile Iron
7 O ring EPDM
8 Thrust ring Brass
9 sealing ring EPDM
10 socket head screw Carbon Steel
11 O ring EPDM
12 Hand wheel Ductile Iron
13 Stem Nut Brass

Rubber Resilient Seated Gate Valve Pn16
