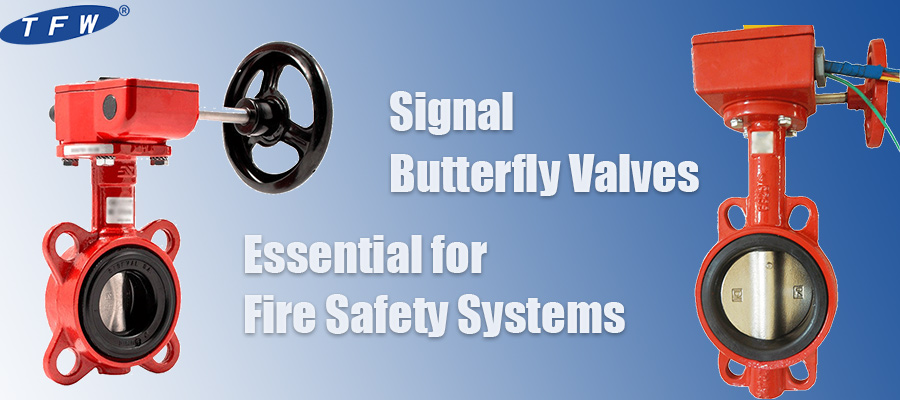

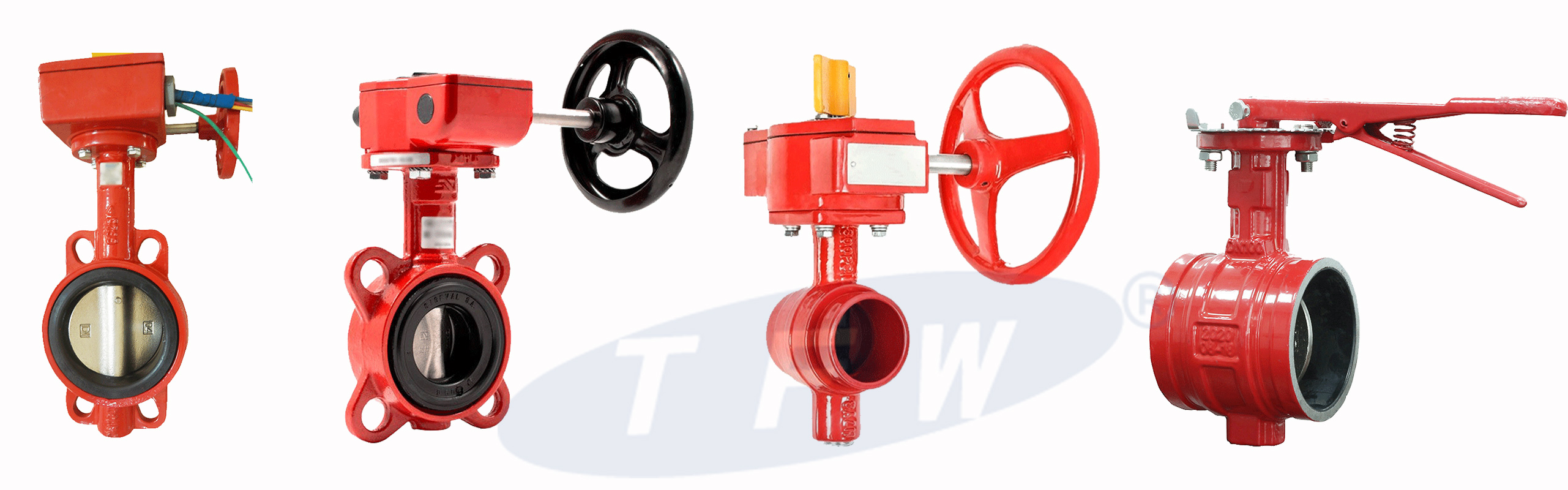

Signal Butterfly Valves: Essential for Fire Safety Systems

The signal butterfly valve is a crucial device in fire protection systems, ensuring safe and reliable operation in high-rise buildings and industrial facilities. Its unique ability to provide real-time switch status feedback enhances the control and monitoring of fire pipelines. As one of TFW Valve’s most popular products, the signal butterfly valve offers efficient control, real-time monitoring, and flexible installation, making it an essential part of fire protection systems.

Why Signal Butterfly Valves Matter

In high-rise building fire protection systems, signal butterfly valves are typically installed at two critical locations:

1.Before the water flow indicator on the floor’s horizontal main pipe.

2.Before the wet alarm valve on the main pipeline.

These placements serve two main purposes:

1. Facilitating System Maintenance

When the sprinkler system on a floor requires maintenance, simply close the signal butterfly valve and open the drain port to empty the water from the pipeline, ensuring that the maintenance work is carried out safely and efficiently.

2. Real-Time Alert Function

A sprinkler system must always be filled with water to function properly in case of a fire. If the signal butterfly valve is accidentally closed, it will immediately send a signal to the fire alarm system, notifying personnel that the sprinkler system is without water. This alert enables quick intervention, preventing a potential failure during a fire emergency.

Thus, the installation of signal butterfly valves is not only a matter of maintenance convenience but also a critical safety necessity in fire protection systems.

Working Principle of the Signal Butterfly Valve

The signal butterfly valve operates through a worm gear transmission mechanism, which drives the butterfly disc to rotate, enabling valve opening, closing, and flow control. Its key advantages include high efficiency, stability, and real-time status feedback, making it easy to operate and maintain.

Inside the worm gear transmission box, a micro switch is installed to detect the valve’s status. The micro switch design typically follows two common configurations:

Dual Micro Switch Design

Equipped with both "open" and "closed" micro switches.

When the valve is fully opened or closed, the corresponding switch is triggered, sending a signal to the control room to activate either the "valve open" or "valve closed" indicator light.

This design allows operators to easily monitor the valve’s status, making adjustments and maintenance more efficient.

Example: In industrial settings such as chemical plants, control systems use these indicators to track the operational status of each signal butterfly valve.

Single Micro Switch Design

Only includes a "closed" micro switch.

When the butterfly disc is fully closed (0° position), the micro switch triggers a closing signal.

As the disc rotates between 40° and 90°, another contact outputs an opening signal.

The cam on the micro switch can be adjusted to display different positions of the butterfly disc, providing a clear visual representation of the valve’s status.

During operation, the handwheel on the worm gear transmission mechanism is rotated to control the angle of the butterfly disc, thereby adjusting the valve’s opening, closing, and flow rate.

Turning the handwheel clockwise → Closes the valve, restricting or stopping the flow.

Turning the handwheel counterclockwise → Opens the valve, allowing fluid to pass through.

Operators can flexibly adjust the valve’s opening degree based on actual requirements, enabling precise flow control for different system demands.

Advantages of the Signal Butterfly Valve

1. Real-Time Status Feedback

   Equipped with built-in micro switches, the signal butterfly valve provides real-time feedback on its open or closed state.

   The "valve open" and "valve closed" signals allow operators to remotely monitor and control the system, ensuring safe and reliable operation.

2. Easy Operation

   The worm gear transmission mechanism makes opening and closing the valve effortless and precise.

   With a handwheel design, users can intuitively rotate clockwise to close and counterclockwise to open, making adjustments simple and efficient.

3. Efficient Flow Control

   The butterfly disc design enables rapid opening and closing.

   By adjusting the disc angle, operators can fine-tune the flow rate, meeting the specific requirements of different working conditions.

4. Compact Structure, Space-Saving

   The compact and lightweight design makes the signal butterfly valve ideal for tight spaces.

   It is particularly suited for high-rise buildings and complex industrial environments where space is limited.

5. Easy Maintenance

   Its modular design simplifies inspection and repairs.

   When maintenance is needed, simply close the valve and drain the pipeline—there's no need to disassemble the entire system.

Installation Guidelines for Signal Butterfly Valves

1. Flexible Installation Positions

Signal butterfly valves can be installed in horizontal, vertical, or inclined pipelines, making them adaptable to various spatial layouts.

Their compact design allows for easy integration into tight spaces, such as high-rise buildings and dense pipeline networks, offering significant advantages in engineering design.

2. Adaptability to Bidirectional Flow

Most signal butterfly valves are designed with bidirectional sealing, allowing media to flow in either direction without strict installation orientation requirements.

This feature simplifies installation, making it ideal for systems where flow direction may change, such as fire protection water supply lines.

TFW Valve's signal butterfly valves are equipped with bidirectional sealing for maximum flexibility. However, for optimal seal longevity, it is recommended to install the valve following the intended flow direction whenever possible
