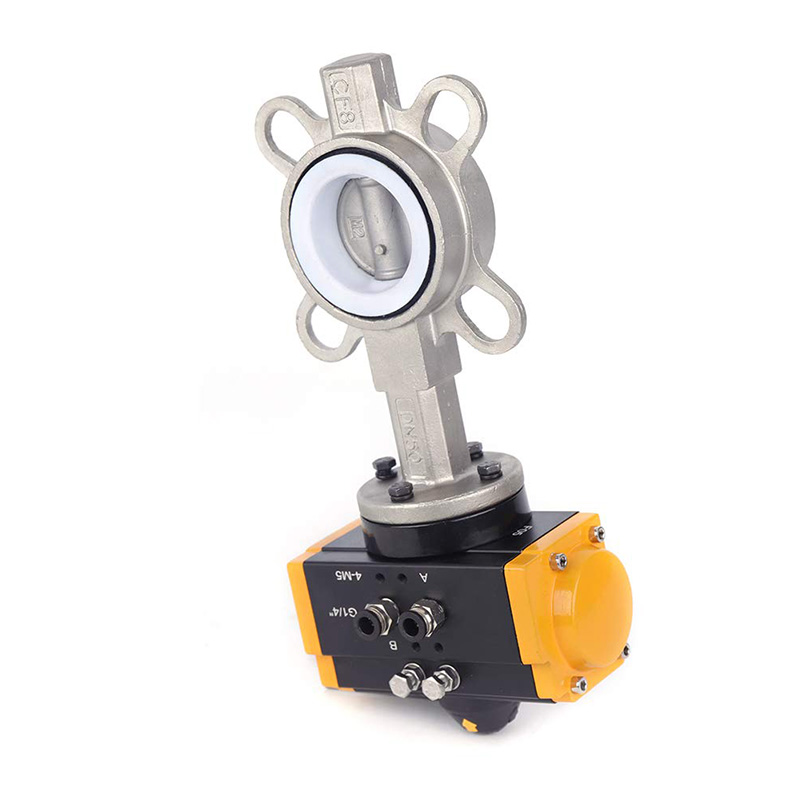

Stainless steel wafer butterfly valve with PTFE seat With pneumatic actuator

Share to:

Stainless steel wafer butterfly valve with PTFE seat With pneumatic actuator

Size: DN50-DN1000
Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze
Bushing:PTFE
O-ring:NBR EPDM

Availability:

Quantity:



Inquire

Product Description

Size DN50-DN1000
Body:Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
Seat:EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
Shaft: Stainless Steel 416,316,304
Disc:Ductile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze
Bushing:PTFE
O-ring:NBR EPDM

Specifications:

Size	DN50-DN1000
Nominal Pressure	PN10/16, 150-300LB
Working Temperature	-30。c - 135。C
Suitable Media	Chemicals, air, water, steam, oil, acids, salts ect

Standards:

Design standard	API609, ANSI16.34, JISB2064, GB T12238
Face to Face	API609, DIN3202, ISO5752, BS5155
Flange drilling	DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange	ISO5211
Test Inspection	API598

aterial:

Body	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc	Ductile Iron, Carbon Steel, Stainless Steel
Stem	Stainless Steel
Seat	EPDM, NBR, PTFE, VITON, HYPALON
O ring	EPDM, NBR
