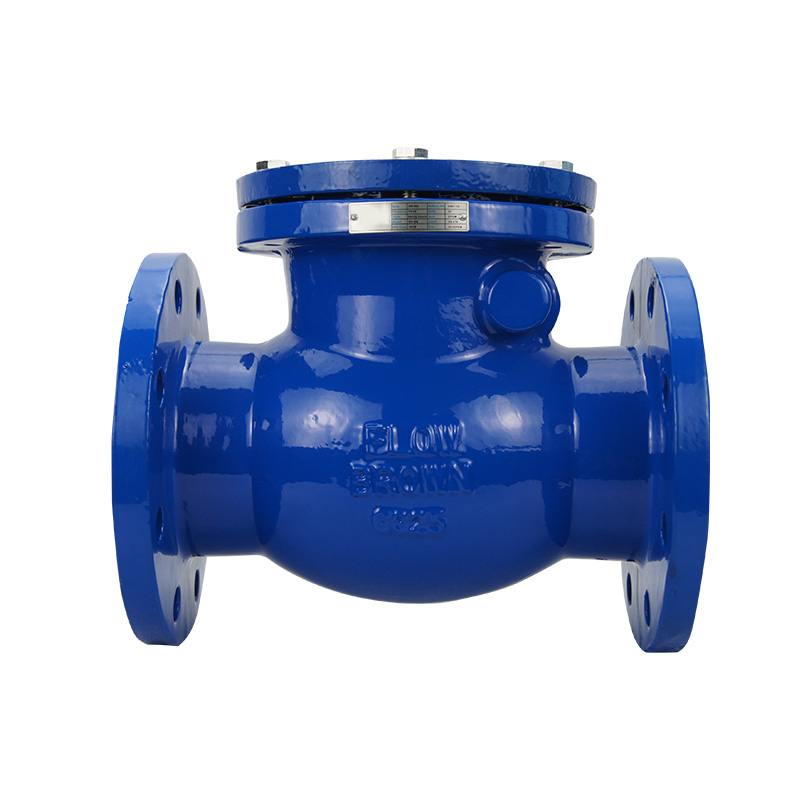

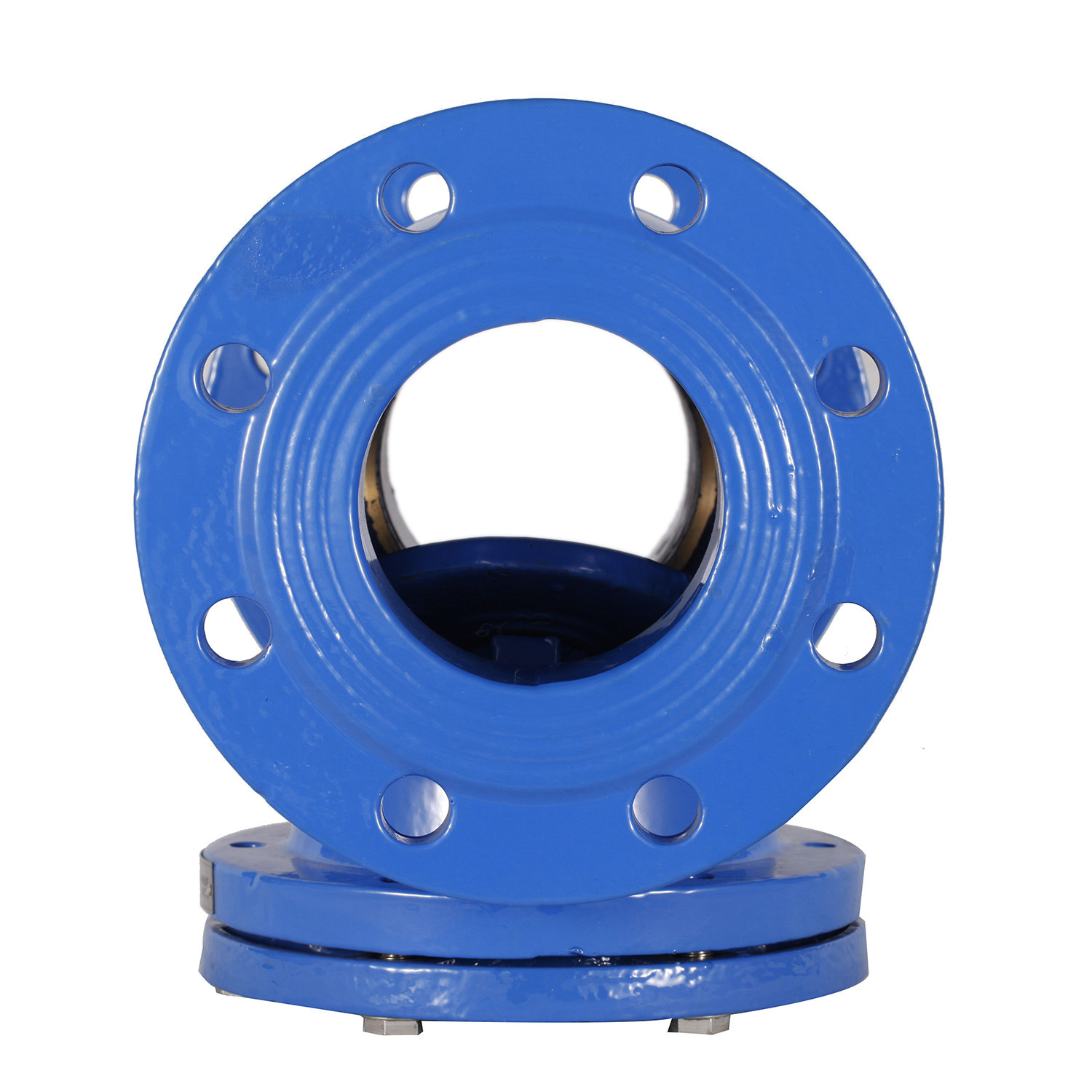

Swing Check Valve (BS5153)
Confirm to BS5153 PN16
Flange Drilled Conforms to BS4504
Face to face Dimensions Conform to Series 2 of BS5153
NO. | PART | MATERIAL | STANDARD |
1 | Bolts | steel | BS970 73A |
2 | Identification Plate | Aluminium | |
3 | Bonnet | Cast Iron | BS1452 Cr.180 |
4 | Body Gasket | Graphite | BS2494 Type W |
5 | Stem | Brass | BS2874 CZ12 |
6 | Nuts | Steel | BS970 43A |
7 | Side Plug | Brass | BS2874 CZ12 |
8 | Gasket | Fiber | |
9 | Hanger Pin | Brass | BS2874 CZ12 |
10 | Hanger | Ductile Iron | BS2789 Gr.420-12 |
11 | Disc | Cast Iron | BS1452 Cr.180 |
12 | Disc Ring | Cast Bronze | BS1400 LG2 |
13 | Washer | steel | BS970 43A |
14 | Split Pin | Stainless Steel | BS970 420S37 |
15 | Body | Cast Iron | BS1452 Cr.180 |
16 | Stud Bolt | Steel | BS970 43A |
DIMENSIONS:(mm)
