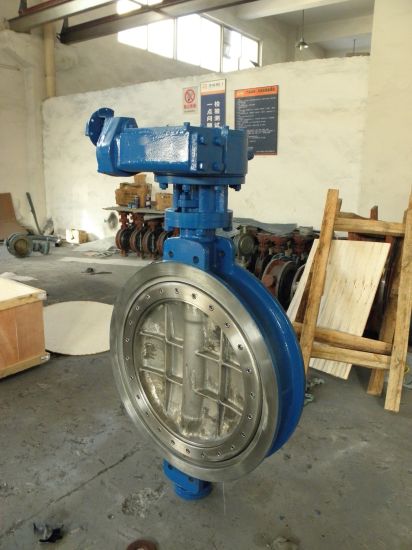

Lug Type High Performance Triple Eccentric Butterfly Valve
Specifications
Size DN50--DN2000
Normal Pressure PN10/PN16/PN25,150-300 Lb
Working Temperature -15c---425c
Suitable Medium Chemicals,air,water,steam,oil,
acids,salts,etc
Standards:
| Design standard | API609, ANSI B16.34, JISB2064, GB T12238 |
| Face to Face | ANSIB16.10,JIS B2002,DIN3202,ISO5752, BS 5155 |
| Flange drilling | DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K |
| Top Flange | ISO5211 |
| Test Inspection | API598 |
Material:
| Body | Carbon Steel, Stainless Steel, Alloy Steel,Cr-Mo Steel |
| Disc | Carbon Steel, Stainless Steel,Alloy Steel,Cr-Mo Steel |
| Stem | Stainless steel,Cr-Mo Steel |
| Sealing ring | Stainless Steel+Flexible graphite |
| Packing | Flexible graphite, Teflon |
Application:
Chemicals, air, water, steam, oil, acids, salts ect
Features:
1. Eccentric structure allows reduce friction with sealing ring and exrtended life
2. Full sealing, zero leakage
3. It can be installed both vertivally and horizontally
4. Easy mount and dismante, convenient for service
Why choose us?
Our Price:
We offer competitive prices on the market and guarantee the high quality of each product!
Our Factory:
We own our own factories more than 20 years.Our factory is located in Jinnan District, Tianjin, China, covering an area of 1,000-3,000 squre meters, with advanced production equipment, which can provide ISO 9001:2000CE and other management certifications.
Our Produts:
We are successed with the production of high quality of soft sealing butterfly valves,gate valves,strainers,checkvalves and other products.Over the years,TFW insist to optimized production base, efficient enterpricemanagerment plateform,strong R&D institutions and one pair of loyal customers responsible for foreigntrade sales team. Products were exported to the US,Canada,Europe,Japan,Australia and other countrieand regions,with annual sales in excess of $10 million.
Our Services:
We promise that we will ship the goods on time;
We can customize your company logo on valve body;
We can do different colors according to your requirements;
We can produce different standards valves to different markts.
More Information, Please Contact Us!
