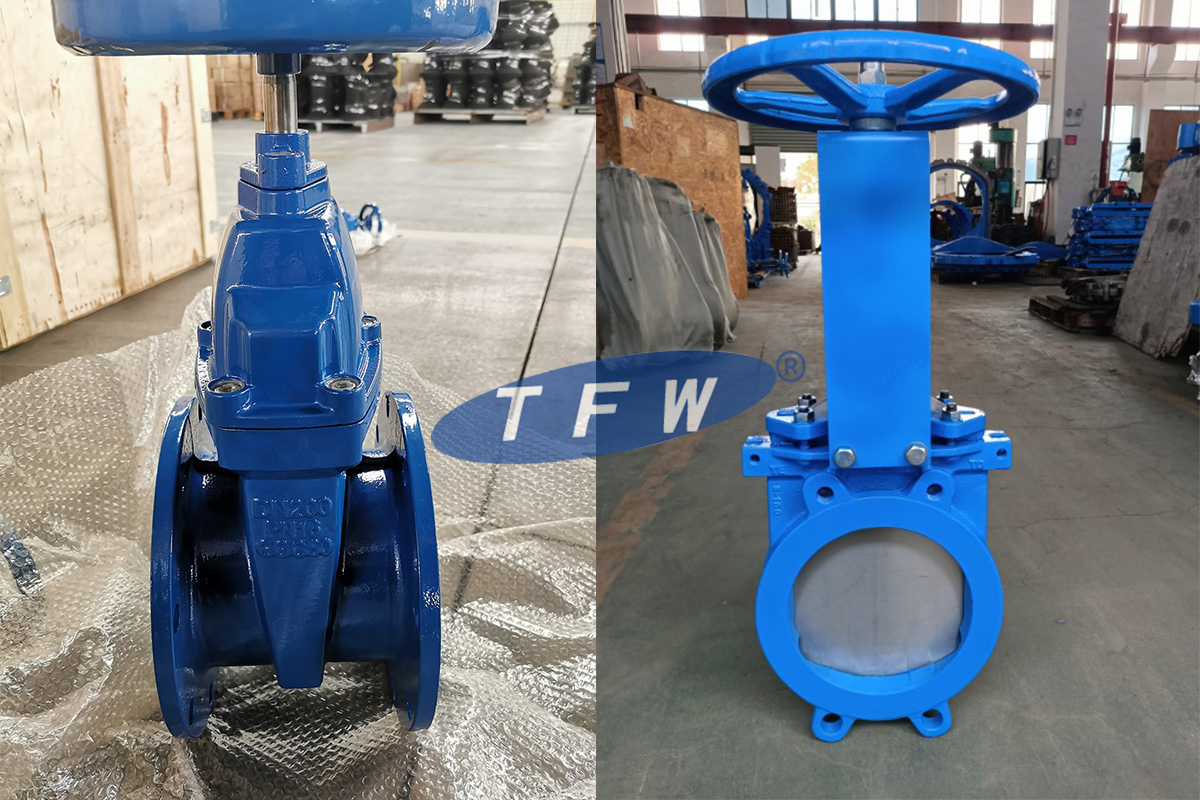

When To Use Gate Valves And Knife Gate Valves

Gate valves and knife gate valves may look similar at first glance, which is why they are often discussed together. However, these two types of valves have significant differences in structure and functionality, making them suitable for different applications. If you're unsure which valve is better suited for your needs, TFW Valve's comparison guide will help you make an informed decision.

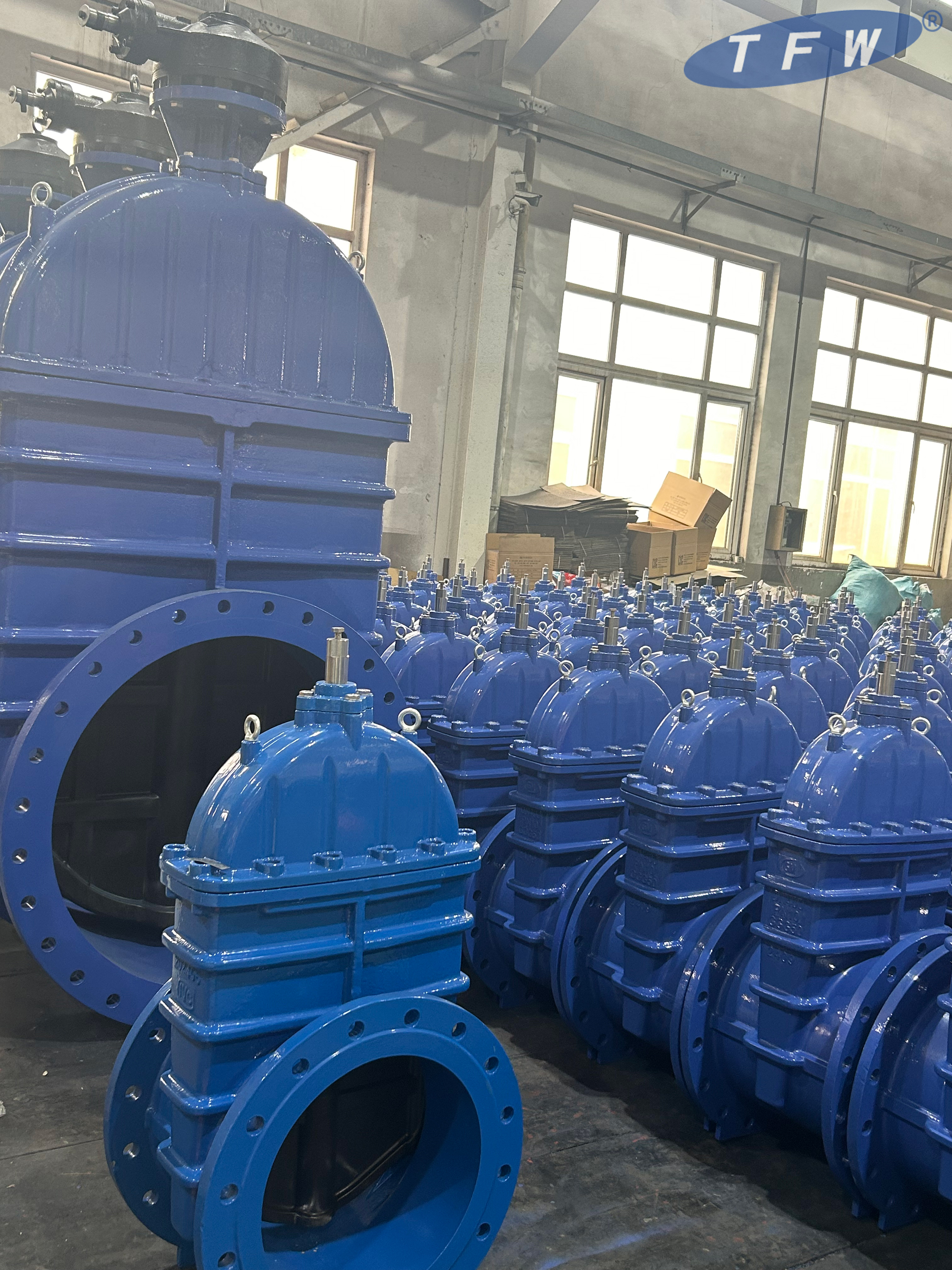

What is a Gate Valve?

Gate valves are a classic type of valve, widely used in various industrial pipeline systems due to their simple design and reliable performance. They control the flow of fluid by raising or lowering a gate (or wedge). The gate moves perpendicular to the direction of the fluid. When the gate is raised, fluid flows freely; when it is lowered, the flow is completely shut off.

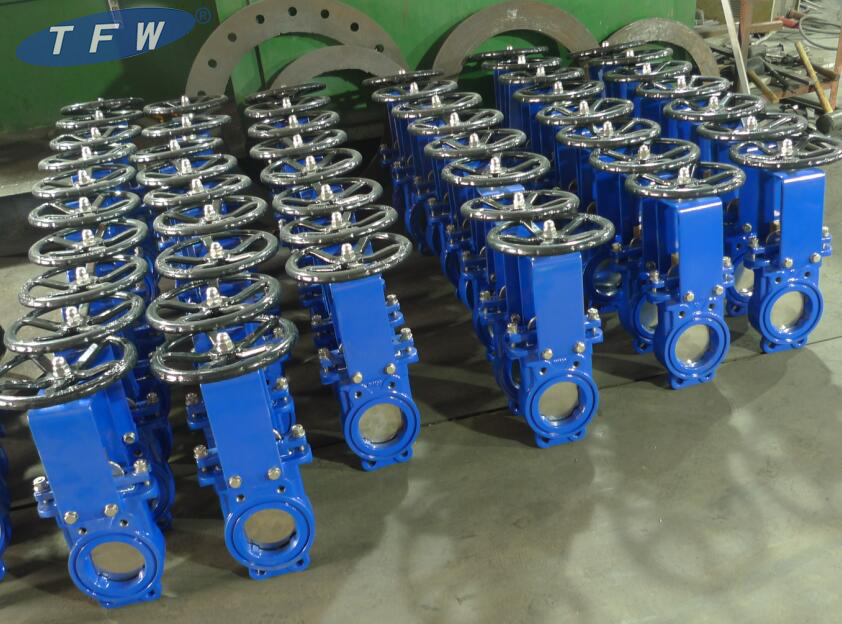

What is a Knife Gate Valve?

A knife gate valve is a specialized type of gate valve. Its unique blade-like gate design gives it exceptional cutting ability, making it effective for handling media containing fibers, particles, slurries, and other impurities. While its structure is similar to that of a standard gate valve, the gate is thinner and has a sharper edge.

Similarities Between Gate Valves and Knife Gate Valves

Both gate valves and knife gate valves are primarily used to control the flow of fluids in pipeline systems. Their core function is to start or stop the flow by raising or lowering the gate.

Neither gate valves nor knife gate valves are designed for flow regulation. They should ideally be used in either fully open or fully closed positions. If frequent flow adjustment is required, other valve types, such as globe valves or butterfly valves, are more suitable.

Key Differences Between Gate Valves and Knife Gate Valves

Although gate valves and knife gate valves share some similarities, they differ significantly in several aspects:

• Gate Shape: The gate in a standard gate valve is thicker and usually wedge-shaped or parallel. In contrast, the gate in a knife gate valve is thinner and resembles a blade.

• Suitable Media: Gate valves, with their better sealing performance and thicker gates, are more suitable for high-temperature, high-pressure conditions and clean media. Knife gate valves, with their blade-like gates, are designed to handle media containing solid particles or fibers.

• Sealing Performance: Gate valves generally offer better sealing performance and lower leakage rates compared to knife gate valves.

• Size and Weight: Knife gate valves are more compact, smaller, and lighter than gate valves of similar size.

When to Use a Gate Valve

1. Medium Characteristics

   When the medium is clean liquids or gases (such as water, oil, or steam), gate valves are an ideal choice. Their simple flow path design ensures smooth operation and prevents clogging.

2. High-Pressure Conditions

   In high-pressure systems, the fully open or fully closed design of gate valves can withstand high pressure, ensuring stable operation in high-pressure environments.

3. Occasions Requiring Complete Fluid Shutoff

   When it is necessary to completely shut off fluid flow, the tight fit between the gate valve's disc and seat achieves zero leakage, making it suitable for applications requiring strict sealing.

4. High Flow Rate Requirements

   The flow path of a gate valve is typically consistent with the pipe diameter, providing a large flow capacity, making it suitable for pipeline systems with high flow rates.

5. High-Temperature Mediums

   When the medium temperature is high, the metal sealing design of gate valves can withstand high temperatures, making them suitable for steam or high-temperature liquid pipeline systems.

6. Long-Distance Pipelines

   In long-distance transportation pipelines, the low flow resistance of gate valves effectively reduces energy loss, making them suitable for long-distance pipeline systems.

When to Use a Knife Gate Valve

Knife gate valves are specifically designed to handle media containing particles, slurries, and wastewater. They are typically used in the following scenarios:

1. Media Characteristics

   Knife gate valves are ideal when the media contains solid particles, fibers, or viscous substances (e.g., pulp, slurry, wastewater). The sharp blade can cut through fibers and particles, ensuring proper valve closure.

2. Harsh Conditions

   In abrasive environments, the stainless steel blade and wear-resistant lining of knife gate valves can effectively resist erosion and wear, extending the valve's service life.

3. Space Constraints

   Due to their compact design and short face-to-face dimensions, knife gate valves are suitable for installations with limited space.

4. Anti-Clogging Requirements

   Knife gate valves typically lack a bottom groove, preventing particle buildup and clogging. This makes them ideal for handling media prone to sedimentation.

Considerations

Since the blade in a knife gate valve is typically unsupported during operation, its pressure rating and size are somewhat limited. Therefore, caution is advised when selecting knife gate valves for high-pressure or large-diameter applications.

Conclusion

Gate valves and knife gate valves each have their strengths. Gate valves are better suited for clean media and high-temperature, high-pressure conditions, while knife gate valves excel in handling media with impurities and harsh conditions.
